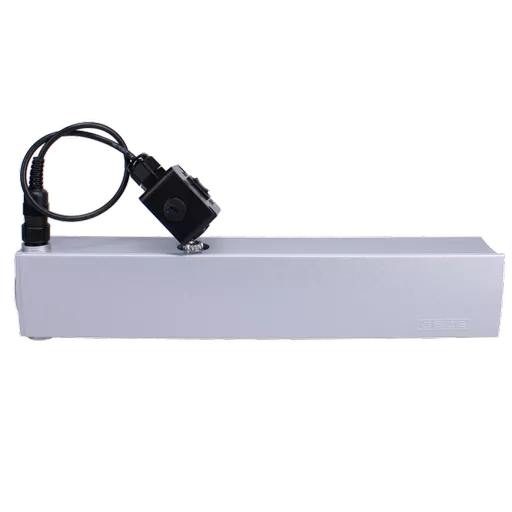

GEZE TS4000E Size 1-6 Overhead Door Closer Body with Electro-hydraulic Hold Open

GEZE TS4000E Size 1-6 Overhead Door Closer Body with Electro-hydraulic Hold Open

L27493

£315.55 ex VAT

PayPal Pay Later

Klarna/Clearpay

In stock

    |    Usually dispatched within 24 hours

Want it by ? Order within and choose Standard Delivery at checkout.

Qty


Ask a Question

Price Match

Please choose your door lock preferences below.

If purchasing for multiple vans, please select options for each van separately. For instance, choose options for van 1 and add them to the basket. Then, select options for van 2 and add them to the basket as well. Rest assured, we'll provide each van lock kit keyed alike, ensuring that all locks operate with the same key. If you need assistance with your order, please don't hesitate to call our sales team on 01858 464133, who will be happy to help.







Product Specifications

  • Backcheck: No
  • Body Depth: 46mm
  • Body Height: 60mm
  • Depth: 46mm
  • Finish: Silver
  • Fire Tested: 1 Hour Timber & 2 Hour Metal
  • Handed: Reversible
  • Hold Open: Yes
  • Input Voltage: 24V DC
  • IP Rating: IP43
  • Max Door Width: 1400mm
  • Pack Quantity: 1
  • Strength Size: 1 To 6
  • Adjustable Closing Speed: 1
  • Adjustable Latch Action: 0
The GEZE TS 4000 E is a surface mounted overhead door closer body incorporating an electric hold-open device for single action doors up to 1400mm wide. It features continuously adjustable closing force from EN size 1 to 6 and can be used on both right and left hand doors without conversion. The electric hold-open function operates over an adjustable range from 80° to 175°, allowing the door to be held open where required as part of a suitable hold-open system. The closing speed can be individually adjusted, while the latching action is adjusted through the associated link arm. A visual closing force indicator allows the selected setting to be easily checked and the main adjustment functions are accessible from the front of the closer. The unit operates from a 24V DC supply and is supplied as the closer body without link arm. The GEZE TS 4000 E is suitable for fire and smoke protection door applications when installed as part of an approved door assembly. This product is Certifire approved to CF 252 and is fire rated for timber (FD60) and metal (FD120) fire doors. This product is fire tested and must be installed per the manufacturer's instructions, and with all relevant associated products.
